Sf6 Gas Processing Equipments

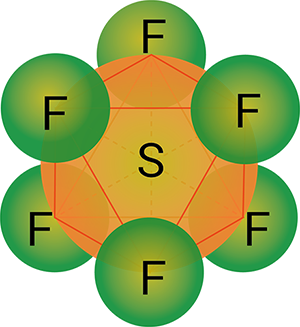

Sulfur hexafluoride (SF₆) is an inorganic, colorless, odorless, non-flammable, extremely potent greenhouse gas which is an excellent electrical insulator. SF₆ has an octahedral geometry, consisting of six fluorine atoms attached to a central sulfur atom.

SF₆ was discovered by  Henri Moissan and Paul Lebeau in 1901

SF₆ is used in the electrical industry as a gaseous dielectric medium for high-voltage circuit breakers, switchgear, and other electrical equipment, often replacing oil filled circuit breakers (OCBs) that can contain harmful PCBs. SF₆ gas under pressure is used as an insulator in gas insulated switchgear (GIS) because it has a much higher dielectric strength than air or dry nitrogen. This property makes it possible to significantly reduce the size of electrical gear. This makes GIS more suitable for certain purposes such as indoor placement, as opposed to air-insulated electrical gear, which takes up considerably more room.

Exposure to an arc chemically breaks down SF₆ though most of the decomposition products tend to quickly re-form SF₆, a process termed "self-healing,”

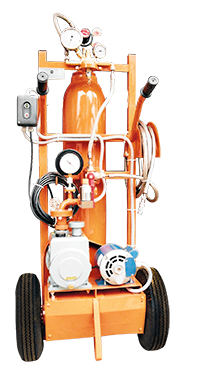

Hexa - REVAC Series is simplest solutions when only SF₆ gas filling & air evacuation from
switchgear is required. Easy to operate & a suitable with no SF₆ emission.

Available options:
Pressure Regulator: Inlet Pressure Max 150 Bar
Outlet Pressure: up to 10 Bar (Adjustable)
Vacuum Pump: 6/14/18m³/h
Ultimate Vacuum: < 1 mbar (abs)

Rubber / Steel Hose: 8/16/20 DN
Length: up to 10 Mtrs.
Hose for Vacuum Pump
Hose for SF₆ refilling
SF₆ Coupling: 8/20 DN (AI/Brass/S.S.)
Pressure / Vacuum Mechanical Gauges

Valves: 10/20 DN (2 Way / 3 Way)
Operating Voltage: 230 Volts AC, 50 Hz

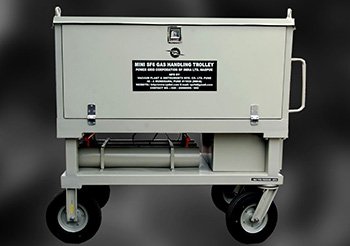

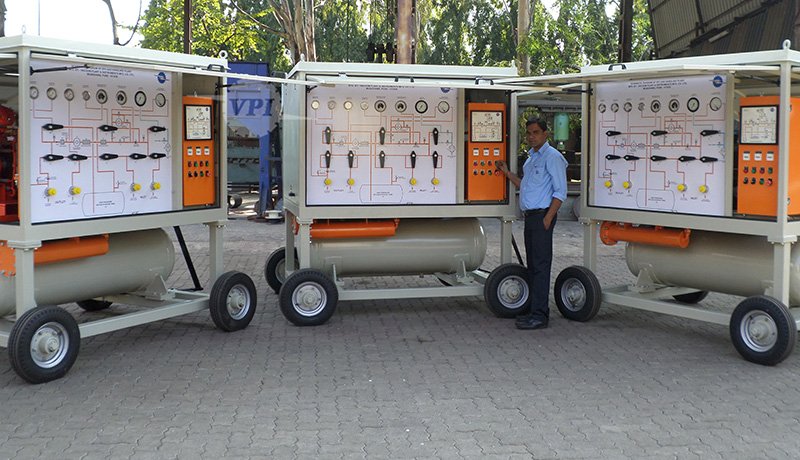

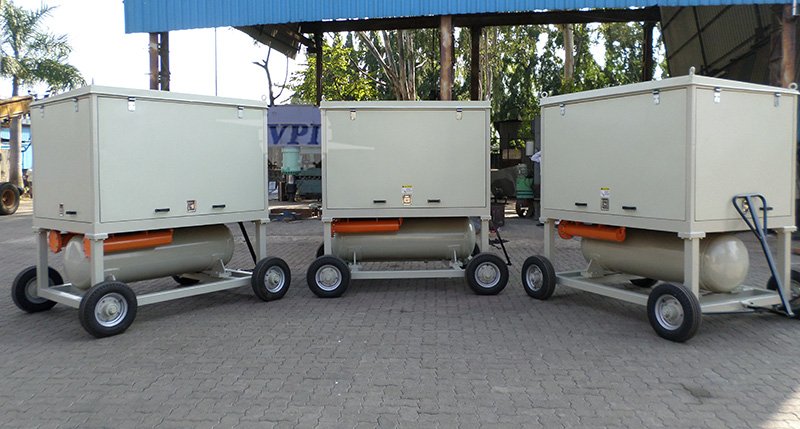

Hexa-S Series  is compact, simple to operate & a suitable solution
for handling small quantities of SF₆ gas in SF₆ switchgear .

Available Capacities:

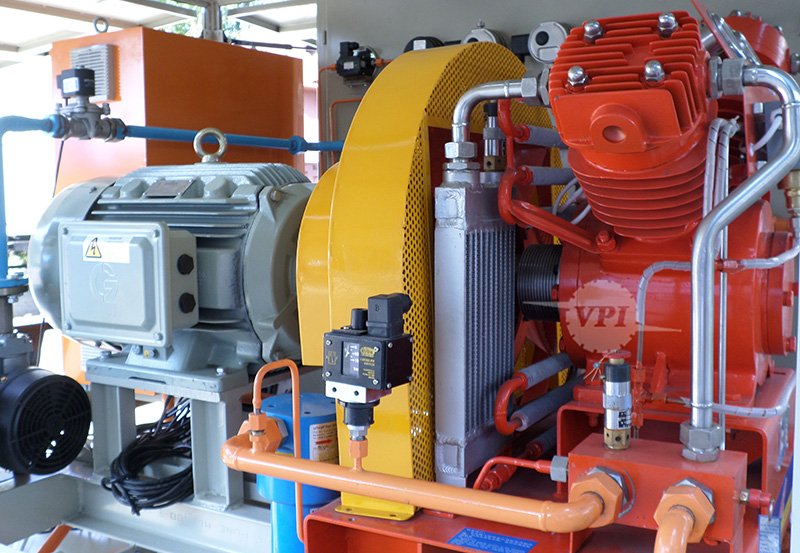

Compressor  : 100% Oil-less Piston

 Displacement : 1.5 / 2.5 m³/h

Discharge Pressure : 25  / 50 Bar

Vacuum Pump : 20 / 30 / 40 m3/h

Ultimate Vacuum :  ≤ 1 mbar (abs)

Storage  Tank*  : 50 Ltrs to 100 Ltrs

Storage Tank Pressure : 25 / 50 Bar

Filter Rating :  0.1µ / 1µ / 5µ  (Any one)

SF₆ Recovery : 50 mbar (abs) / 1 mbar (abs)

Process Control : Manual or Fully Automatic

Operating Voltage :  230 / 415 Volts, 50 Hz

*Standard pressure vessels are as per IS 2825, but if required  EC 97/23

and CE marked Pressure Vessels can also  be supplied.

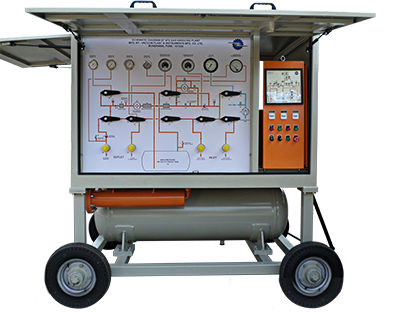

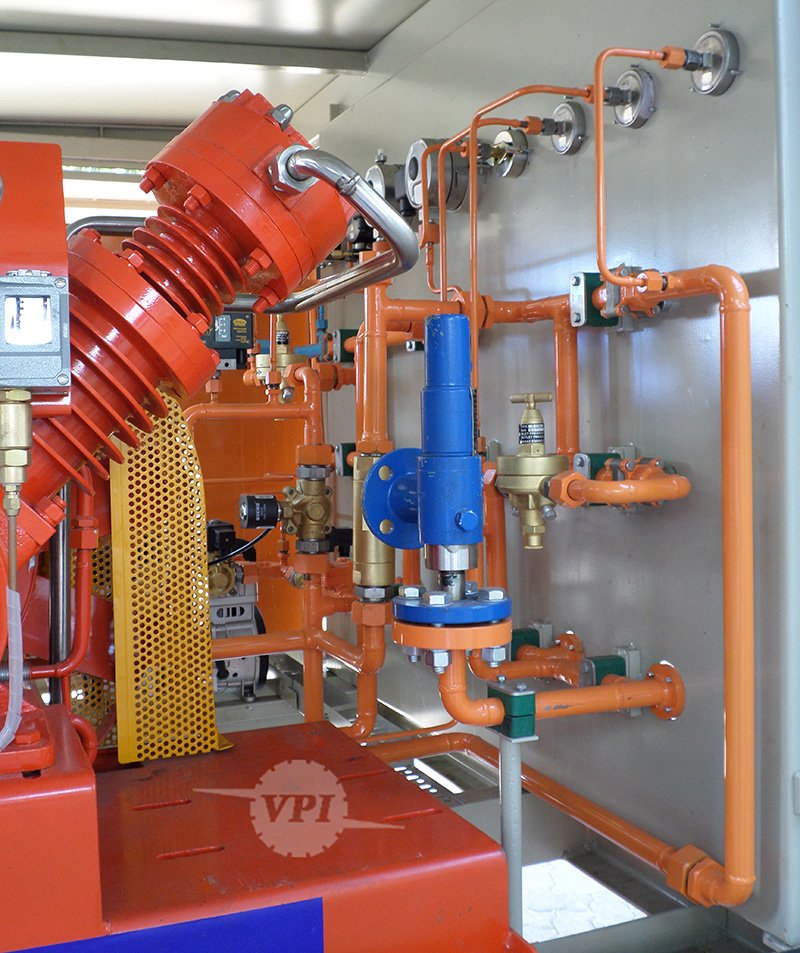

Hexa-M Series  is compact, simple to operate & a suitable solution for efficient handling  of SF6 gas in SF6 switchgear.

Available Capacities:

Compressor  : 100% Oil-less Piston

 Displacement : 6 / 15  m3/h

Discharge Pressure : 25  / 50 Bar

Vacuum Pump : 40 / 60 / 100 m³/h

Ultimate Vacuum :  ≤ 1 mbar (abs)

Storage  Tank*  : 300 Ltrs to 1000 Ltrs

Storage Tank Pressure : 25 / 50 Bar

Filter Rating :  0.1µ / 1µ / 5µ  (Any one)

SF6 Recovery : 50 mbar (abs) / 1 mbar (abs)

Process Control : Manual or Fully Automatic

Operating Voltage :  415 Volts 50 Hz

*Standard pressure vessels are as per IS 2825, but if required  EC 97/23

and CE marked Pressure Vessels can also  be supplied.

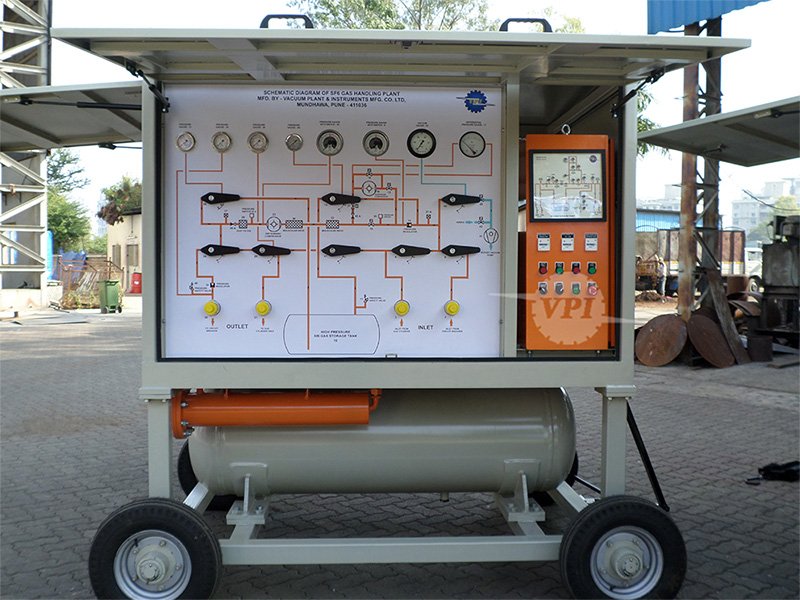

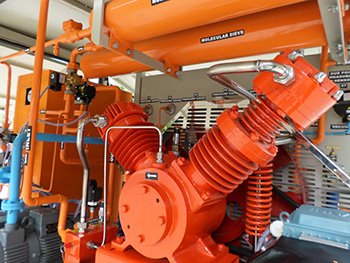

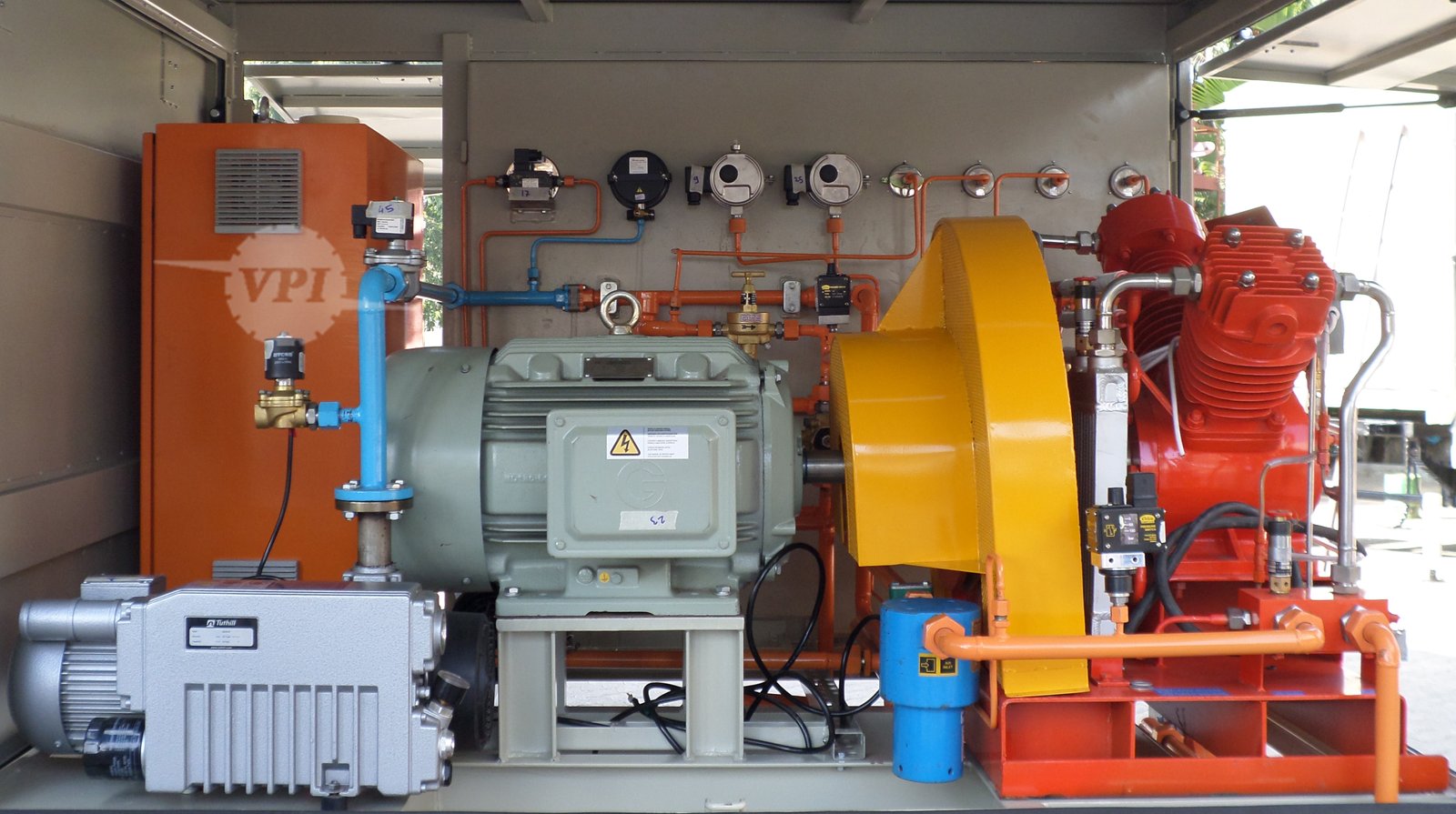

Hexa-L Series is our largest service cart,  is simple to operate & a suitable solution for handling large quantities of SF₆ gas in  SF₆ switchgear.

Available Capacities:

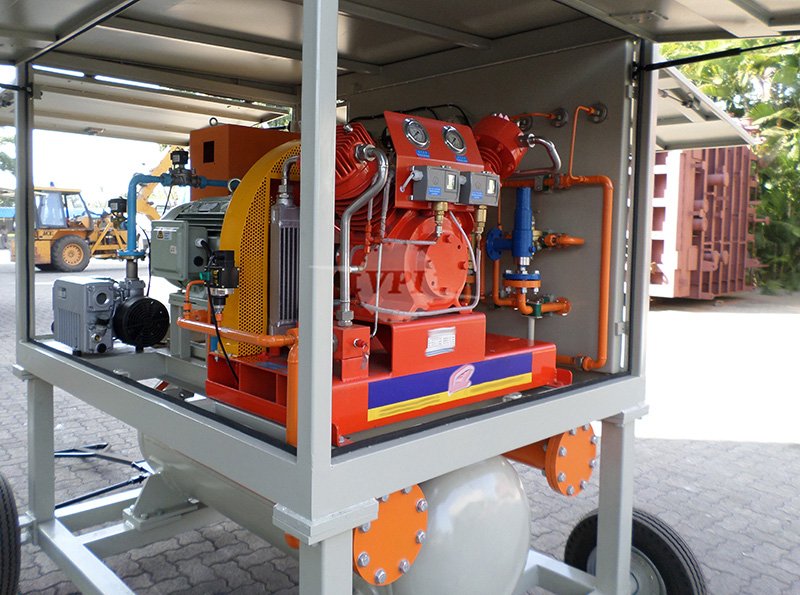

Compressor  : 100% Oil-less Piston

 Displacement :17  m3/h

Discharge Pressure : 25  / 50 Bar

Vacuum Pump : 30 / 40 / 60 m³/h

Ultimate Vacuum :  ≤ 1 mbar (abs)

Storage  Tank*  : 300 Ltrs to 1000 Ltrs

Storage Tank Pressure : 25 / 50 Bar

Filter Rating :  0.1µ / 1µ / 5µ  (Any one)

SF₆ Recovery : 50 mbar (abs) / 1 mbar (abs)

Process Control : Manual or Fully Automatic

Operating Voltage :  415 Volts 50 Hz

*Standard pressure vessels are as per IS 2825, but if required  EC 97/23

and CE marked Pressure Vessels can also  be supplied.

Displacement : Max up to  200 m3/h*

Discharge Pressure : Max up to 150 Bar*

*For Special or customized requirements.
